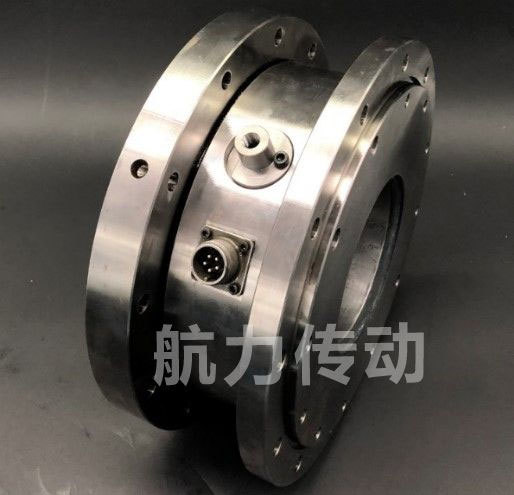

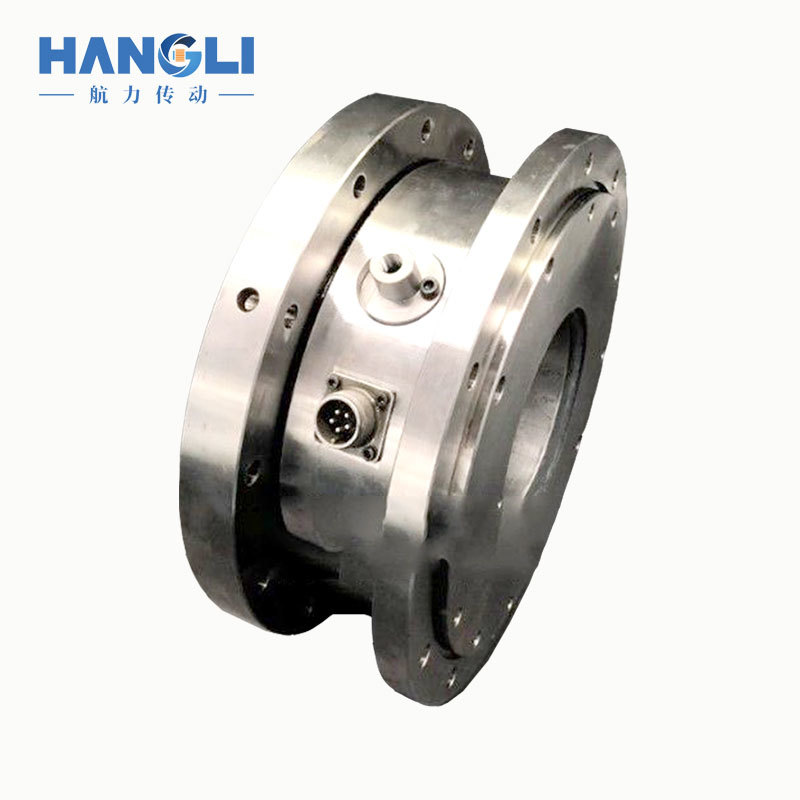

Torque plate
Classification:
Torque plate
Hotline:
Applications
• Suitable for torque measurement in testing of electric motors, generators, and hydraulic pumps; the torque sensor is statically installed between the equipment support and the equipment.
• Torque measurement in dynamometer testing;
• Torque measurement in viscosity testing;
• Torque wrench calibration, tightening torque of fasteners, (aircraft, engine, wind power, etc.) measurement of fracture torque of fasteners, etc.;
Main Features
• Double-sided flange mounting for easy installation and removal;
• Bidirectional torque measurement;
• The design of reaction torque can eliminate the influence of tangential force load, bending moment load and axial load on torque measurement, and is only sensitive to torque load;
• When the measuring component cannot rotate, measuring torque statically will not damage the sensor cable. Using a reaction torque sensor minimizes errors caused by the inertia of rotating components.
• High reliability and high precision. This product is not only robust and durable for factory use, but its accuracy is also suitable for laboratory use.
• A maximum load of 200% of the rated torque will not cause permanent offset of nonlinear characteristics.
Main Parameters
• Torque Measurement Range: 0~10000Nm
• Rated Output Sensitivity: ±2mV/V
• Excitation: 10VDC, maximum 20VDC
• Accuracy: ±0.1% of full scale
• Linearity: ±0.08% of full scale
• Hysteresis: ±0.05% of full scale
• Repeatability: ±0.05% of full scale
• Zero Balance: ±1.0% of full scale
• Operating Temperature Range: -53~120°C (-65 ~ 250°F)
• Self-compensating Temperature Range: 0 ~ 76°C (32 ~ 170°F)
Thermal Effect:
• Zero Temperature Drift: ±0.002%/°F of full scale
• Influence on Output Reading: ±0.002%/°F of reading
Maximum Load:
• Safety: 150% of full scale
• Structure: Alloy structural steel
• Electrical: Supply mating connector

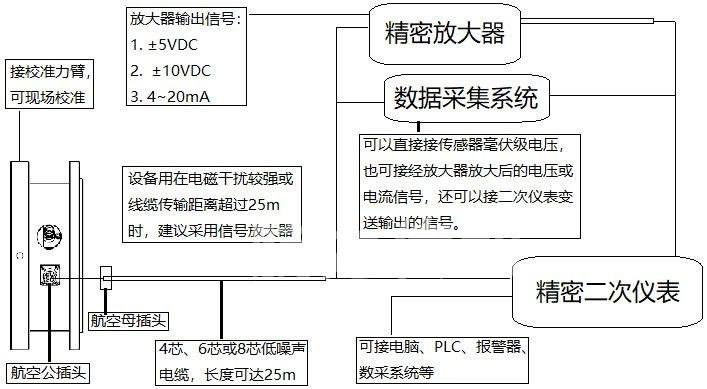

System Diagram
Load Capacity and Characteristic Parameters
Product Series Table
| Model |
Rated Torque |
Limit Torque |
Torsional Stiffness Approx. (kNm/rad) |
Axial Stiffness Approx. (kN/mm) |
Radial Stiffness Approx. |
| HLTM100 |
100 |
200 |
100 |
350 |
110 |
| HLTM200 |
200 |
400 |
288 |
420 |
150 |
| HLTM400 |
400 |
800 |
490 |
530 |
180 |
| HLTM1K |
1000 |
2000 |
1300 |
710 |
250 |
| HLTM4K |
4000 |
7200 |
5300 |
1130 |
390 |
| HLTM10K |
10000 |
18000 |
10600 |
1430 |
500 |
| Note: Customizable according to customer needs. |
|||||
Mounting Interface
Main Product Interface Dimensions Table (mm)
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
K |
| HLTM100 |
137.5 |
125 |
112.5 |
52.5 |
112.5 |
12X5.2 |
3.3 |
54 |
2.75 |
| HLTM200 |
168 |
152.5 |
137 |
63 |
137 |
12X6.2 |
4 |
64.8 |
3.2 |
| HLTM400 |
198 |
180 |
162 |
75.6 |
162 |
12X7.6 |
4.7 |
78 |
4.0 |
| HLTM1K |
279.5 |
254 |
228.55 |
104.5 |
228.55 |
12X10.3 |
6.5 |
108 |
5.5 |
| HLTM4K |
440 |
400 |
360 |
168 |
360 |
12X16.8 |
10.4 |
172.8 |
8.8 |
| HLTM10K |
550 |
500 |
450 |
230 |
450 |
12X21 |
13 |
216 |
11 |
